Mixthesizer Live Tools — Analog Mixer 8/16ch for Synths & Live Sets

Mixthesizer Live Tools — Analog Mixer 8/16ch for Synths & Live Sets

€1.000,00 EUR
€1.000,00 EUR
Sale Sold out
Shipping calculated at checkout.
Format

FCPRO.AUDIO

MIXTHESIZER LIVE TOOLS — not just a mixer. It's the analog core of your live rig: a single, compact unit that replaces five separate devices and gives you the control, flexibility, and sound quality that a real performance demands.

▸ WHY CUSTOM

Every channel is built around our exclusive Combo Audio Level Control system: a single rotary knob that electronically combines volume and gain into one smooth, musical response. As you push the level, the circuit introduces a natural touch of analog saturation and harmonic warmth — the sonic character that makes Live Tools sound like nothing else in its class.

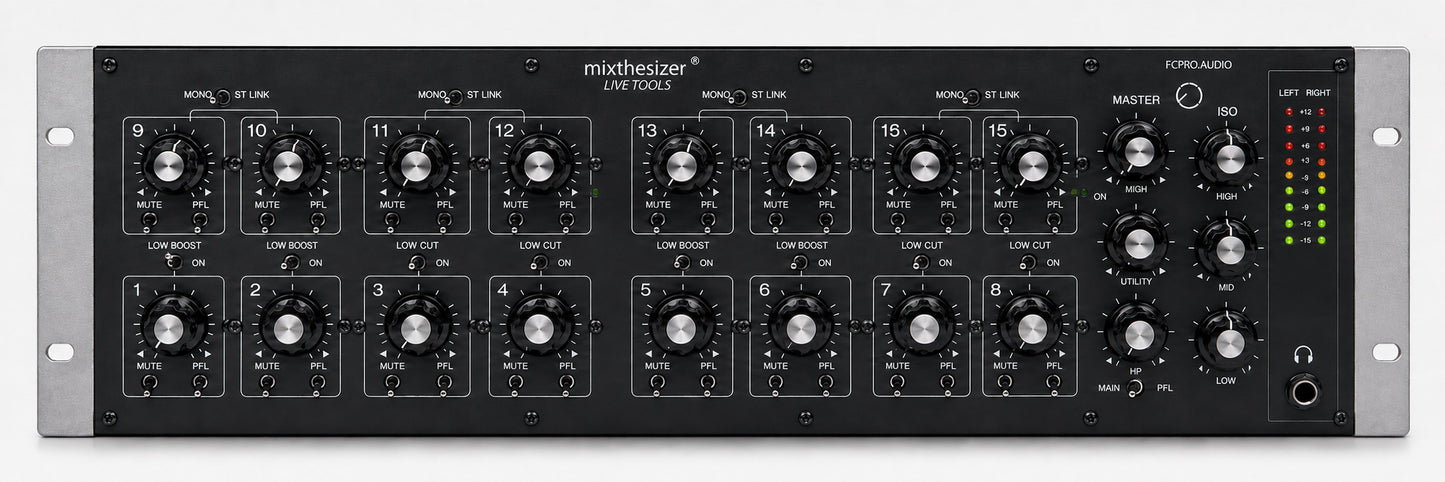

8ch / 16ch Channel count options
Desktop / Rack Form factor
ISO 3-band isolator — optional
DI Active DI box — optional
▸ KEY FEATURES

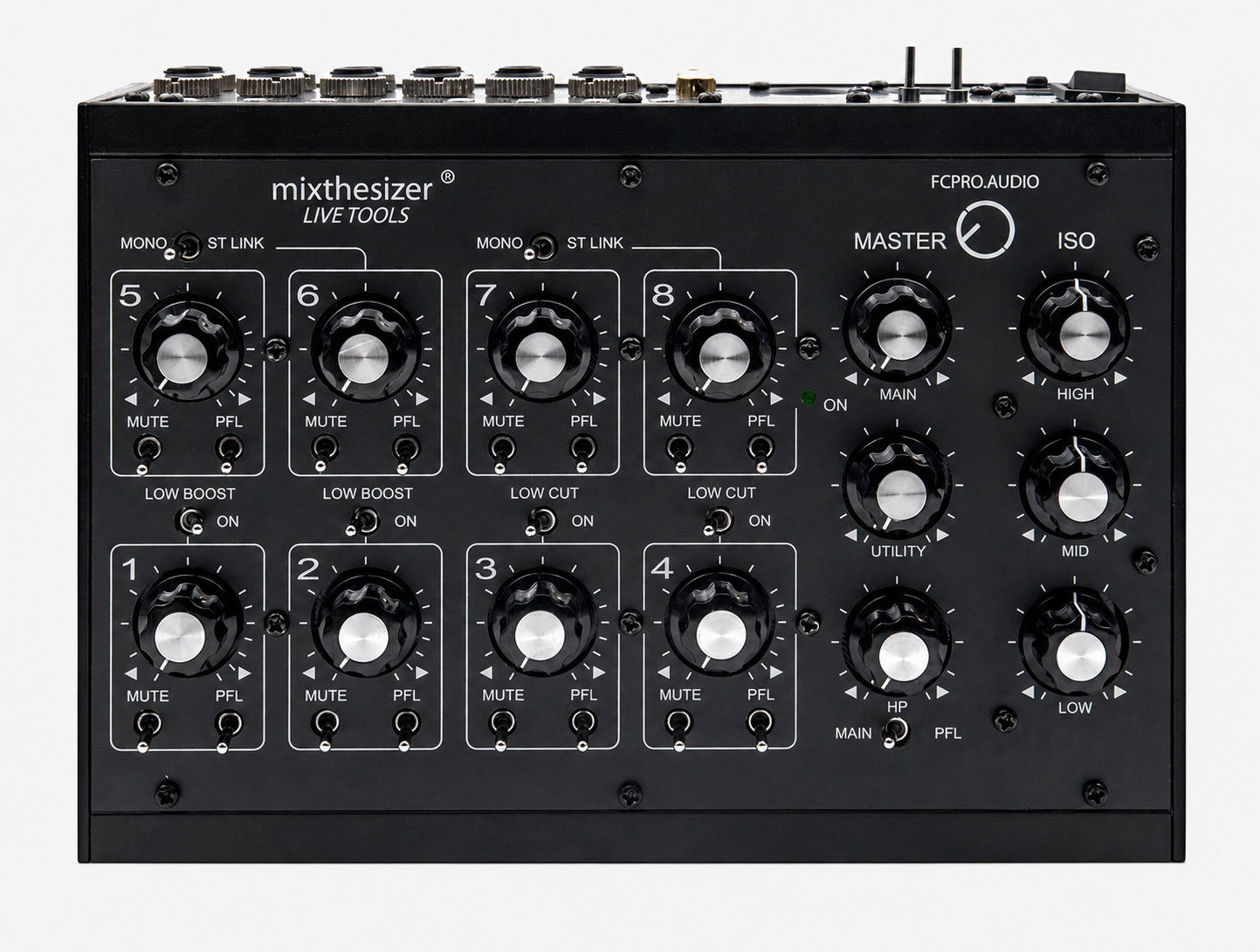

Channel Section

  • Flexible channel configurations: all mono, or stereo pairs (5/6, 7/8...) via dedicated ST Link switch
  • In stereo mode, the even channel (e.g., 6) controls pair volume; the other channel should be set to minimum
  • Channels 1–2: Low Boost switch for kicks, basslines, and weak synth sources
  • Channels 3–4: Low Cut switch for cleaning up heavy sub frequencies from powerful bass synths
  • MUTE and PFL on every channel

Master Output

  • The MAIN knob controls both Master Out (TRS) and DI Out (XLR, if present) simultaneously
  • Master Out: balanced stereo TRS output for mixers, interfaces, PA systems, monitors
  • Utility Out: secondary independent output with dedicated volume — balanced TRS standard

PFL & Headphone

  • Dedicated headphone amplifier with 1/4" TRS output
  • MAIN/PFL switch: listen to the main mix or solo channels with PFL engaged
  • PFL Link: share one headphone pair between two Live Tools units or compatible mixers

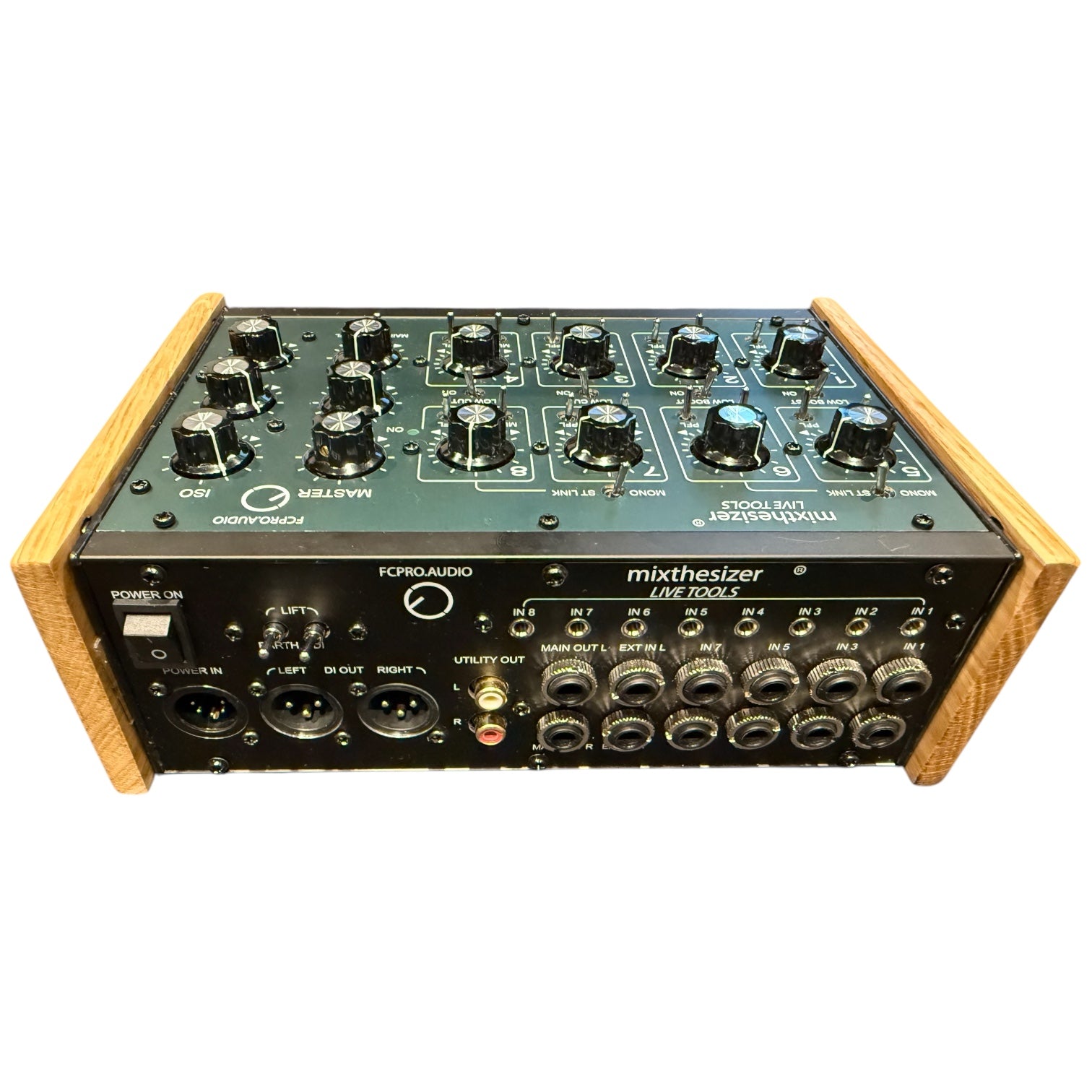

Inputs

  • Each channel: 1/4" TRS jack or 3.5mm mini jack for Eurorack — one or the other, not both
  • External In stereo cascade: no dedicated volume, passes directly to master bus and isolator — designed for daisy-chaining a second Live Tools unit
▸ OPTIONAL MODULES

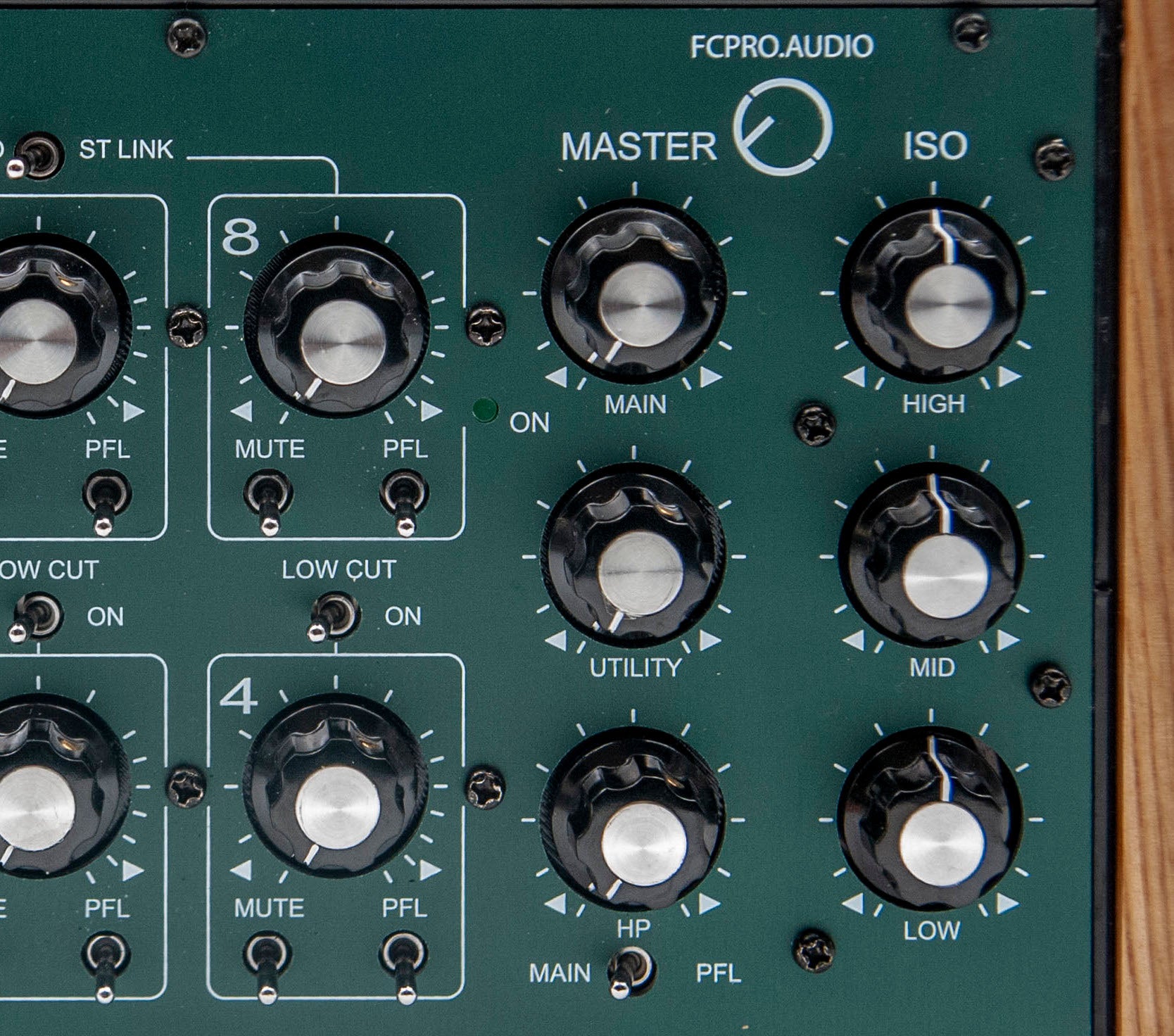

3-Band Master Isolator (optional)

  • Premium RK27 rotary potentiometers on LOW, MID, and HIGH bands
  • Fully attenuate or boost each band for precise tonal sculpting, filter-style transitions, or live EQ control
  • 100% analog, smooth, and musical response

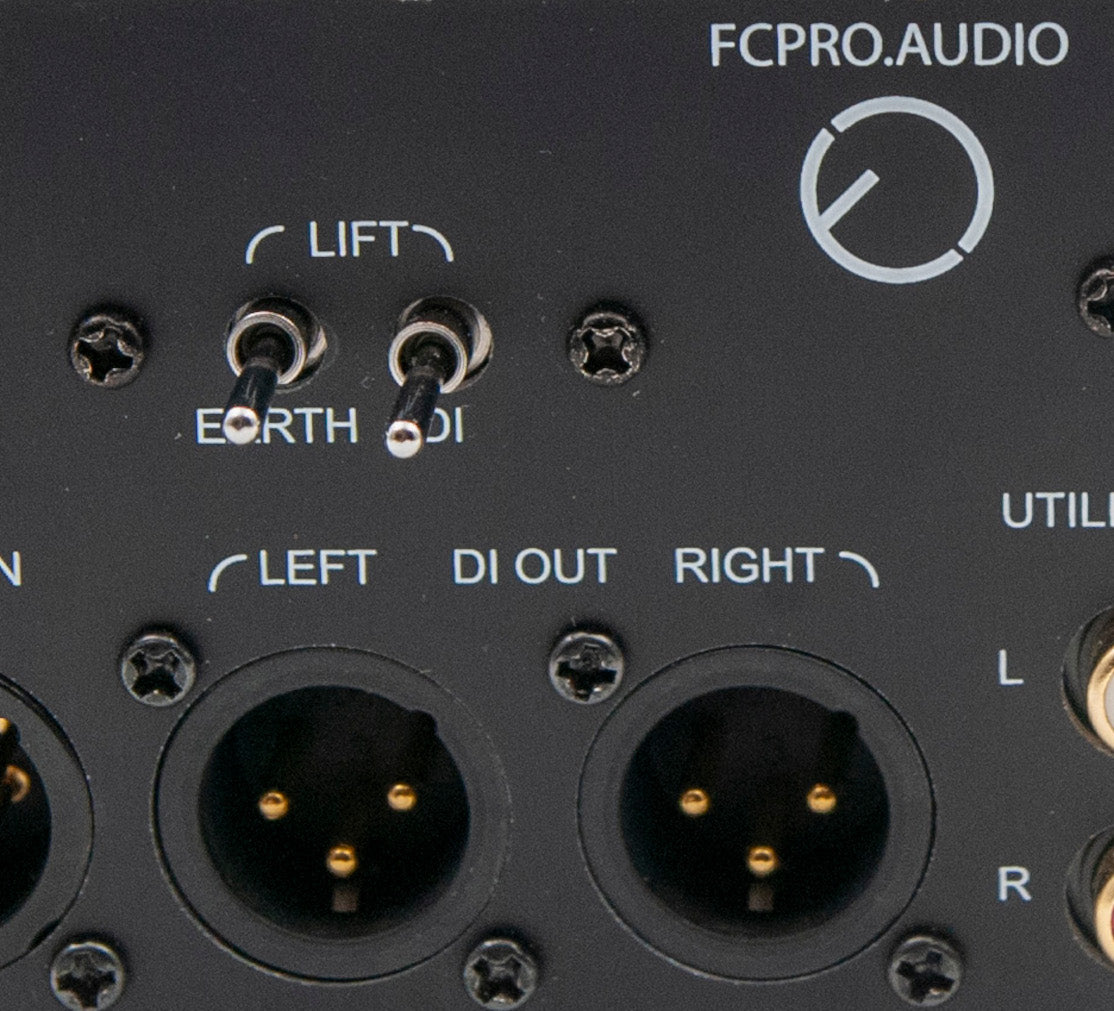

Active DI Box (optional)

  • Balanced stereo XLR output with custom audio transformer
  • Ground lift switches to resolve hum and ground loop issues instantly
  • Isolated signal at reduced level compared to Master Out — ideal for recording consoles or broadcast systems
▸ TECHNICAL SPECIFICATIONS
Channels 8 or 16 (mono, up to stereo pairs)
Format Desktop / Rack (3U)
Signal path 100% analog
Inputs per channel 1/4" TRS or 3.5mm mini jack
EQ Ch. 1–2 Low Boost switch
EQ Ch. 3–4 Low Cut switch
Stereo link Pairs via ST Link switch
Master Out Balanced TRS stereo
Utility Out Balanced TRS (RCA on custom editions)
DI Out (opt.) Balanced XLR stereo — transformer
Isolator (opt.) 3-band, RK27 pots
Headphone Out 1/4" TRS — dedicated amplifier
Metering LED LEFT/RIGHT +12 to -15 dB — Rack only
External In Stereo TRS cascade input
Power supply ±15V DC switching — 75W total
AC input 100–240V AC, 50/60Hz

⚠ Use only the supplied power supply. Other adapters may compromise performance or damage the unit.

HANDMADE TO ORDER
Every unit is individually assembled and tested. Delivery times will be communicated after order confirmation and option selection.
