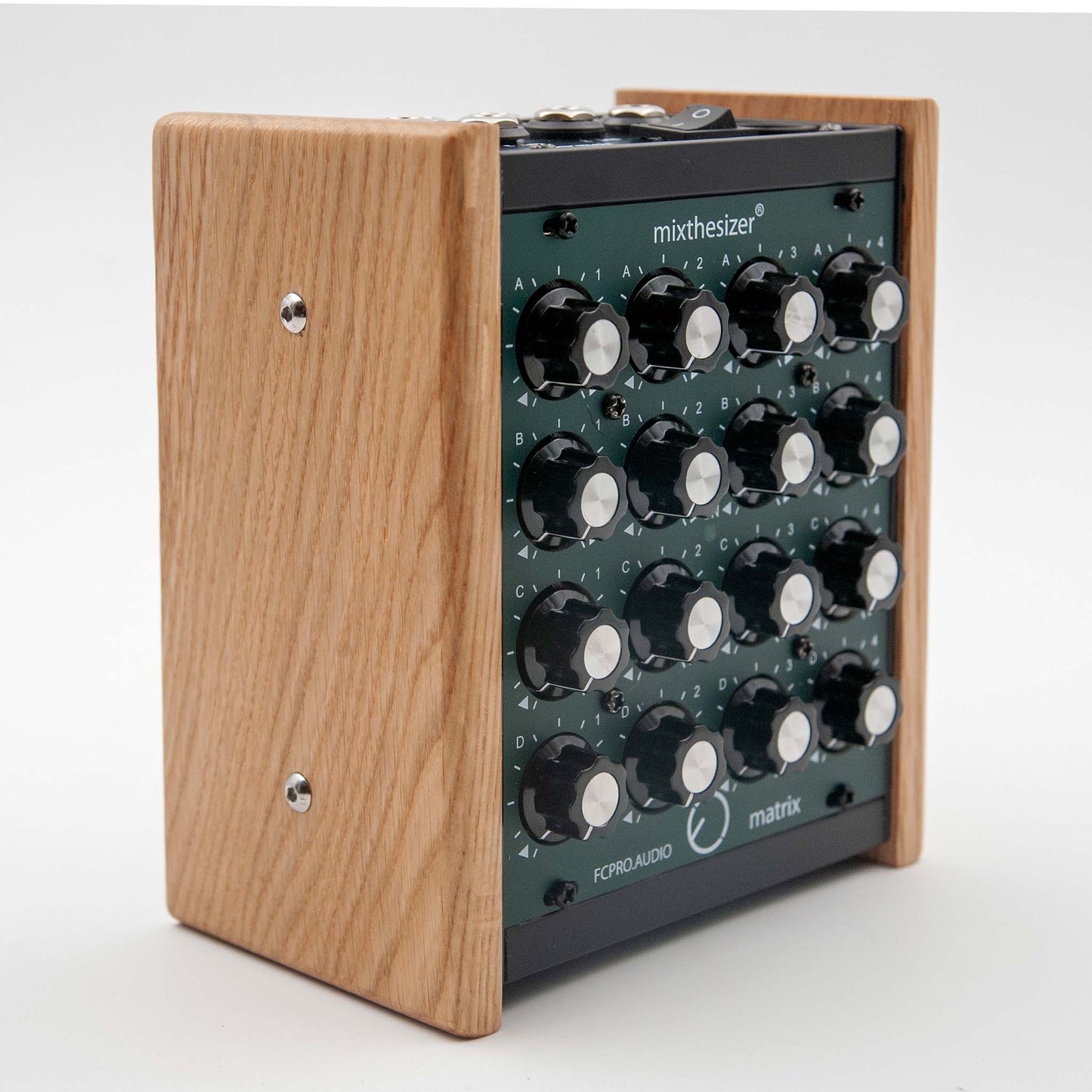

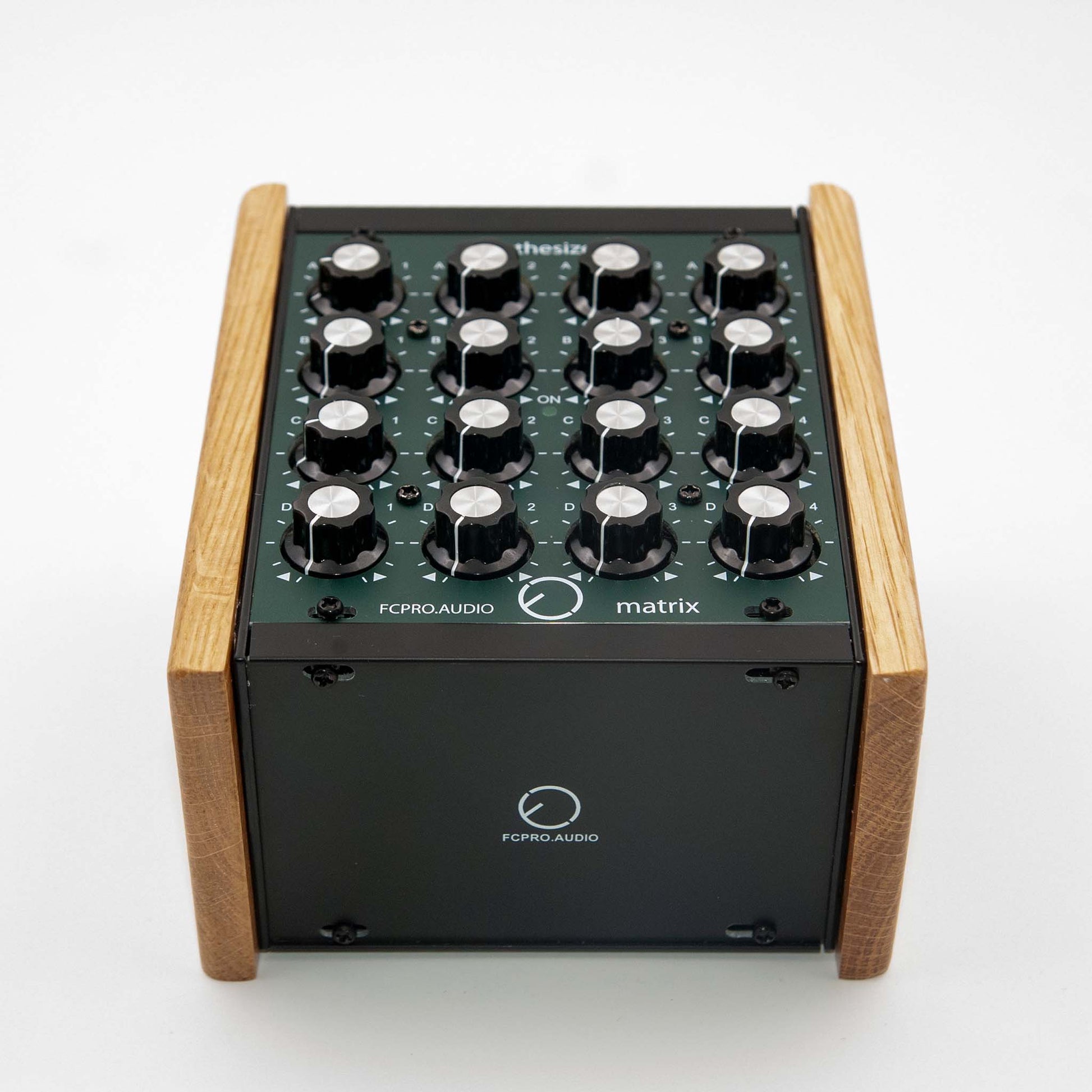

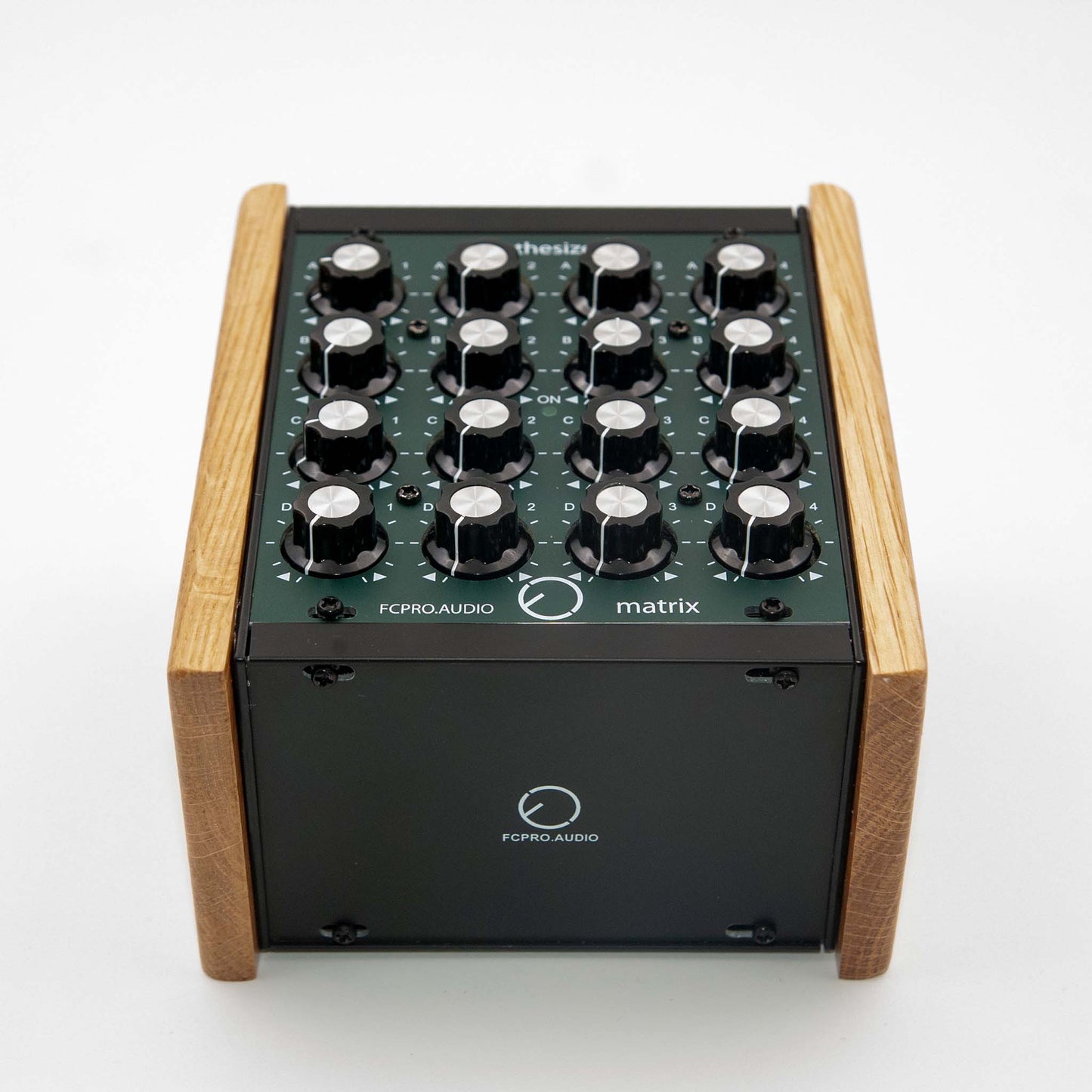

The Mixthesizer Matrix is a 100% analog audio matrix, designed for flexible signal routing and volume control between inputs and outputs. Each output can receive one or more signals with independent level control.
Key Features
• 4 inputs / 4 outputs per module (4x4)
• 16 potentiometers for volume control on each output path
• Flexible routing: any input to one or more outputs
• Inputs and outputs programmable as mono or stereo via DIP switches
• Modular and expandable system
Expandable Configurations

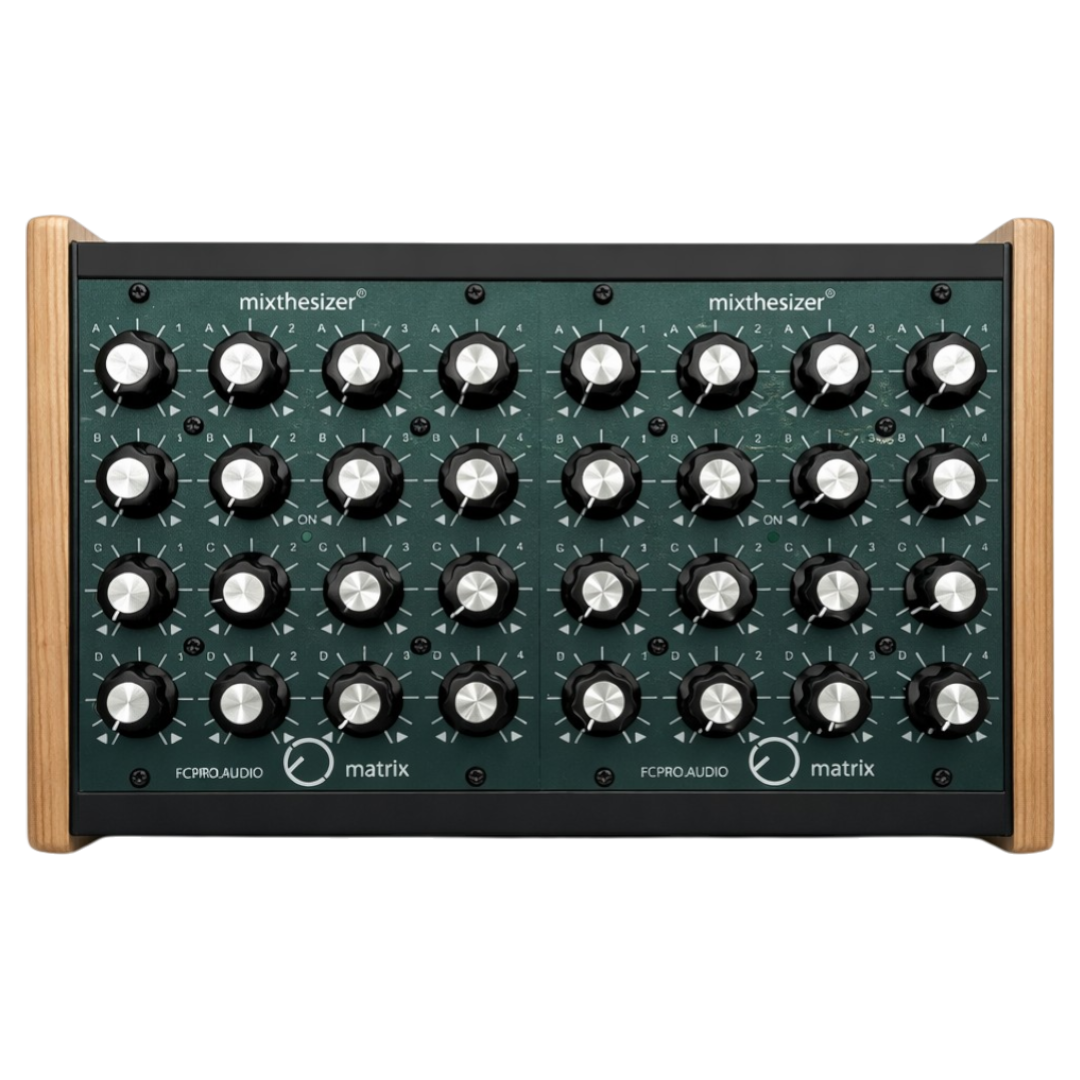

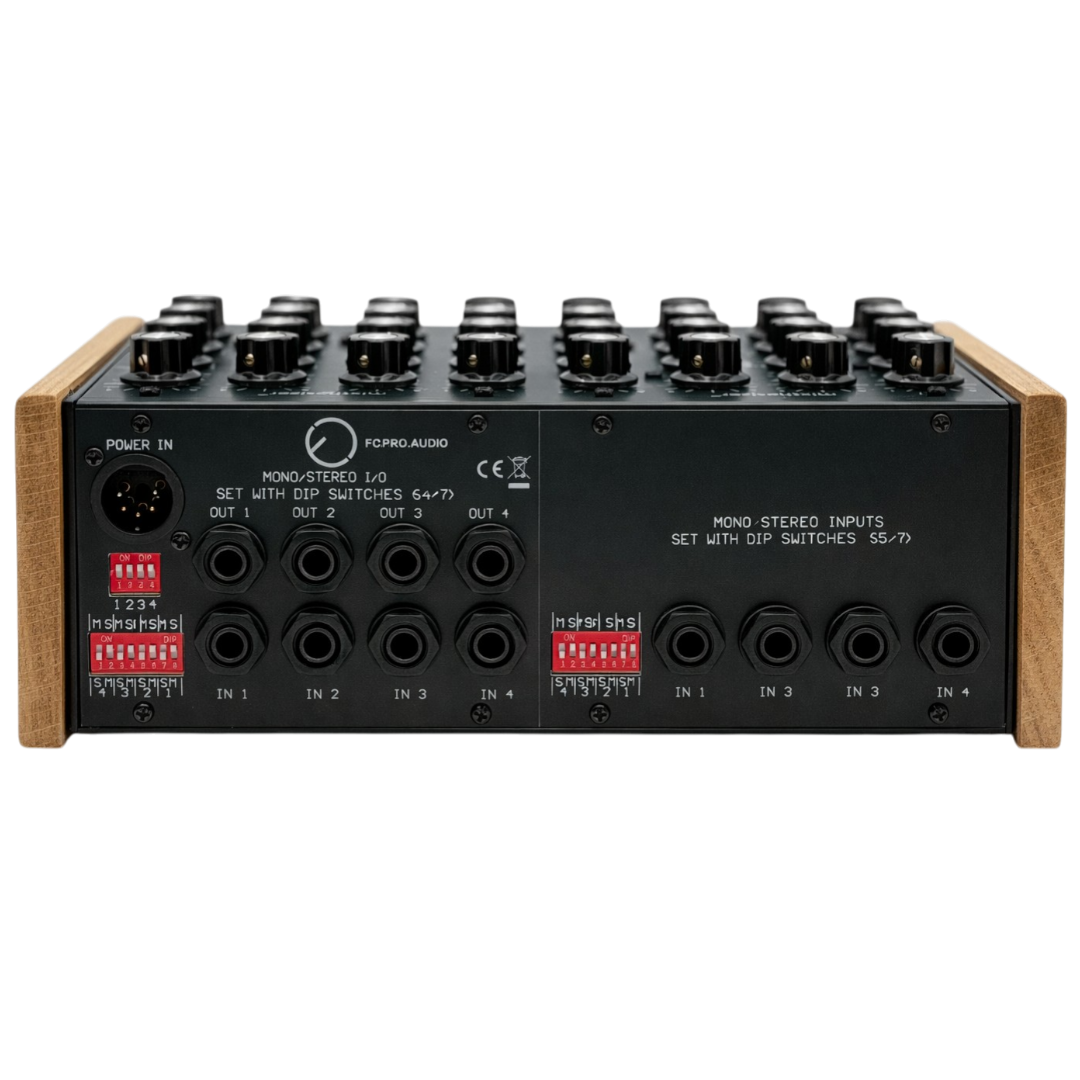

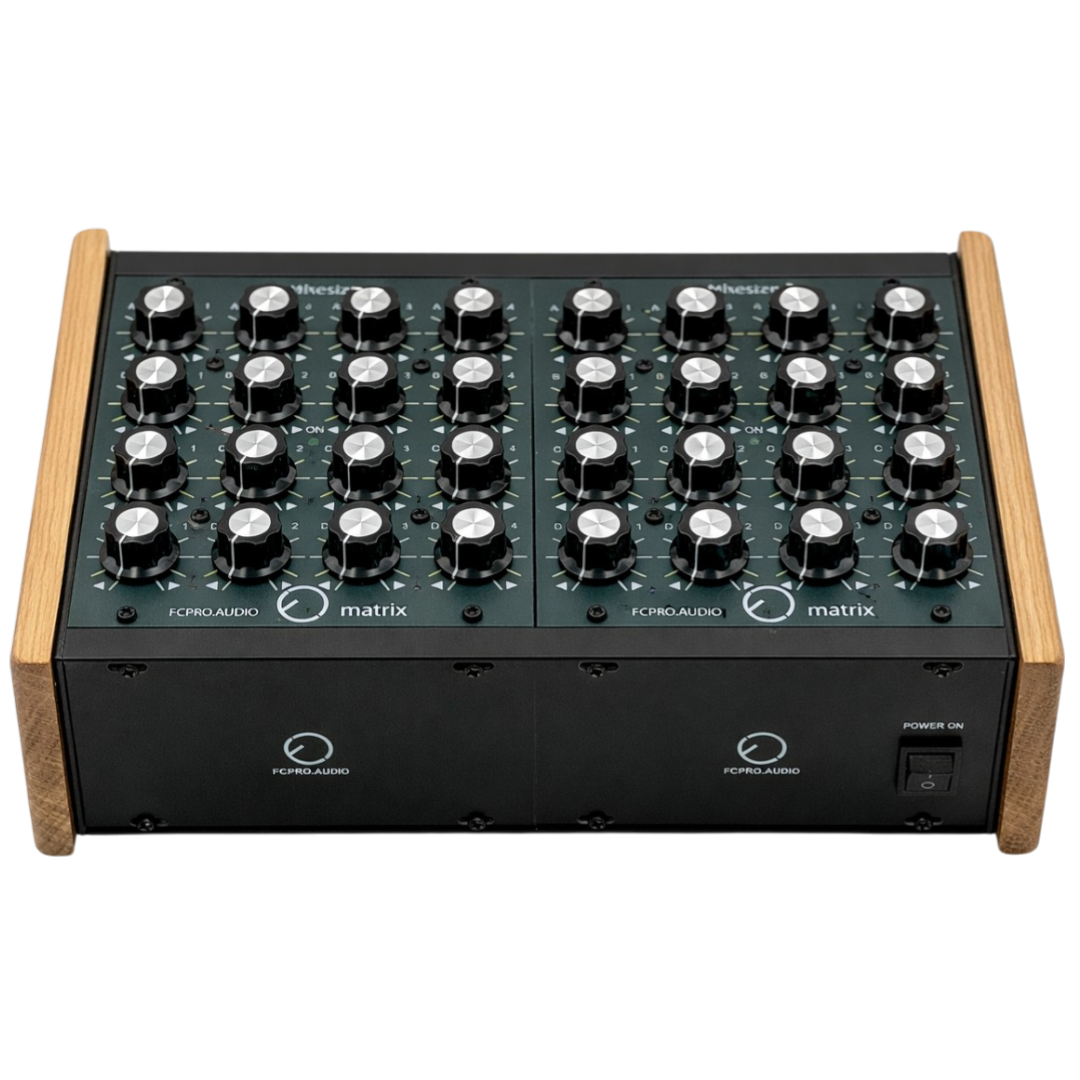

• 8x4 (2 modules)
• 8x8 (4 modules)

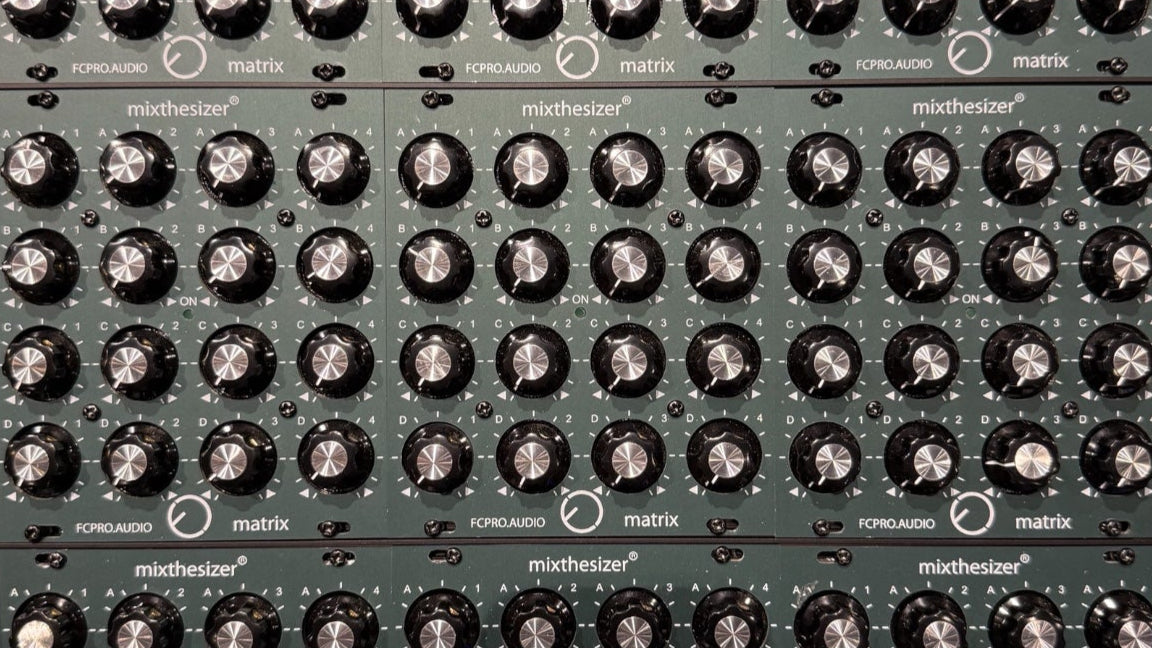

• 12x12 (9 modules)
• 16x16 or more (on request)
Specifications
• Size: 11HP width, 3U height (per module)

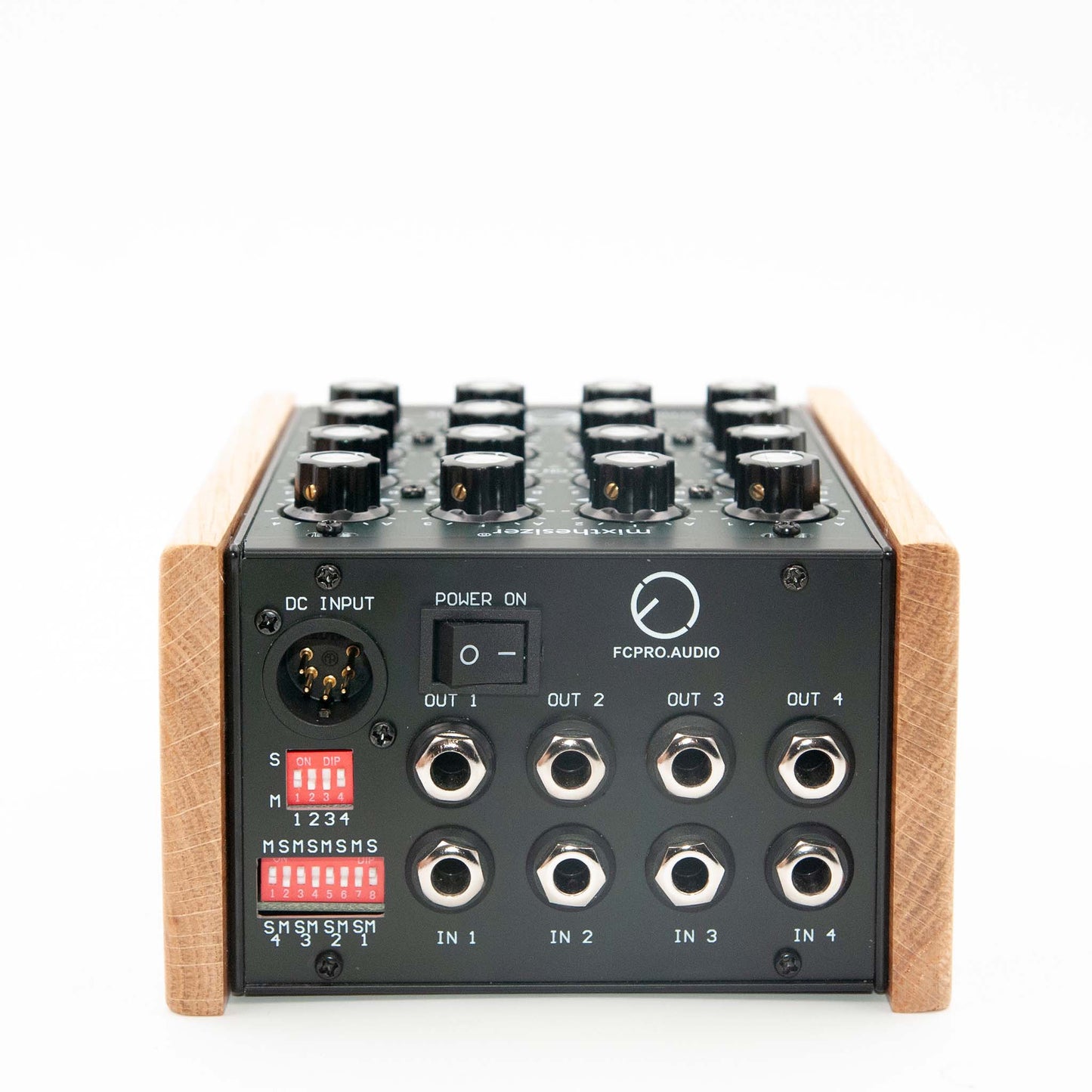

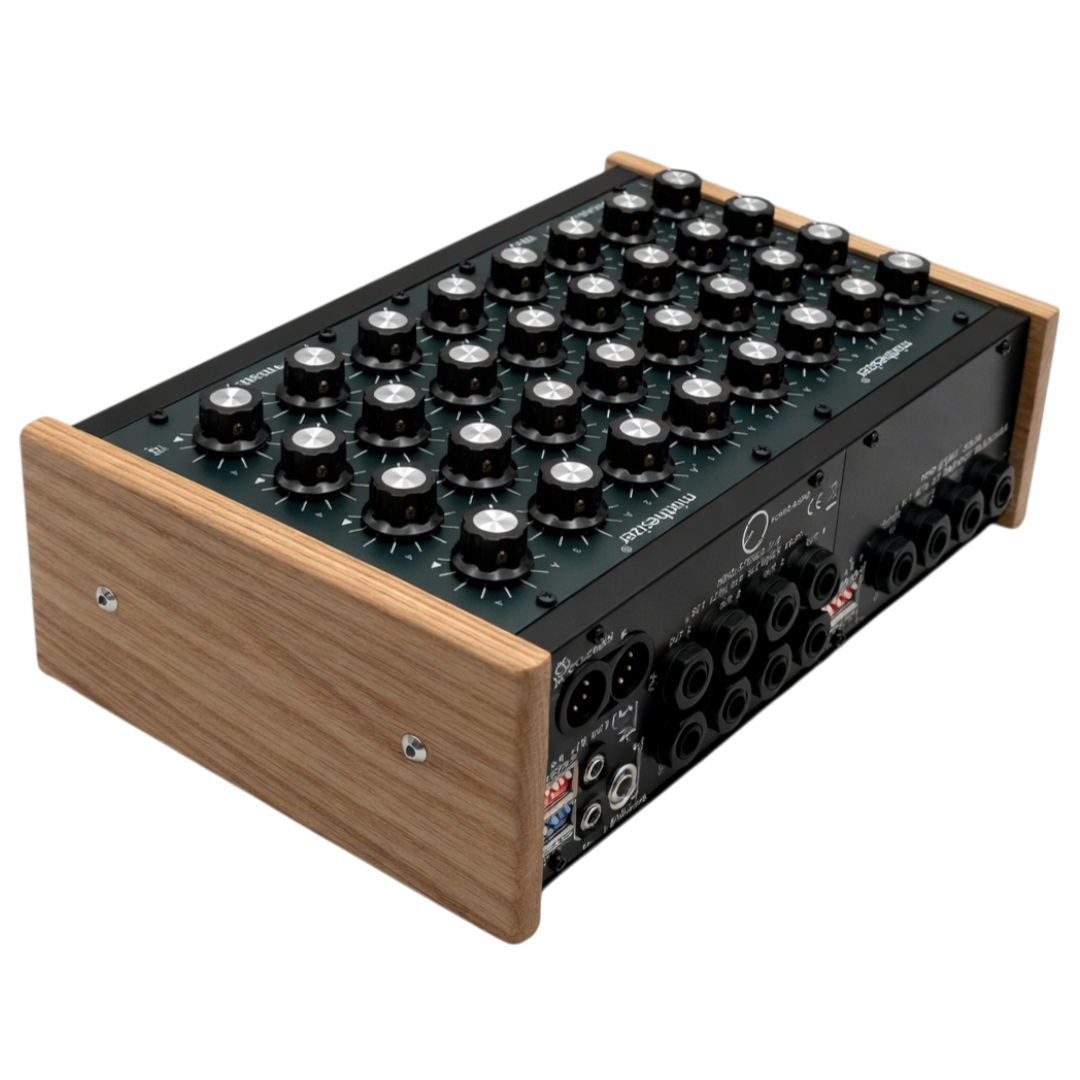

• Connections: 6.3 mm TRS jacks
• Power: ±15V DC external (XLR 5-pin)

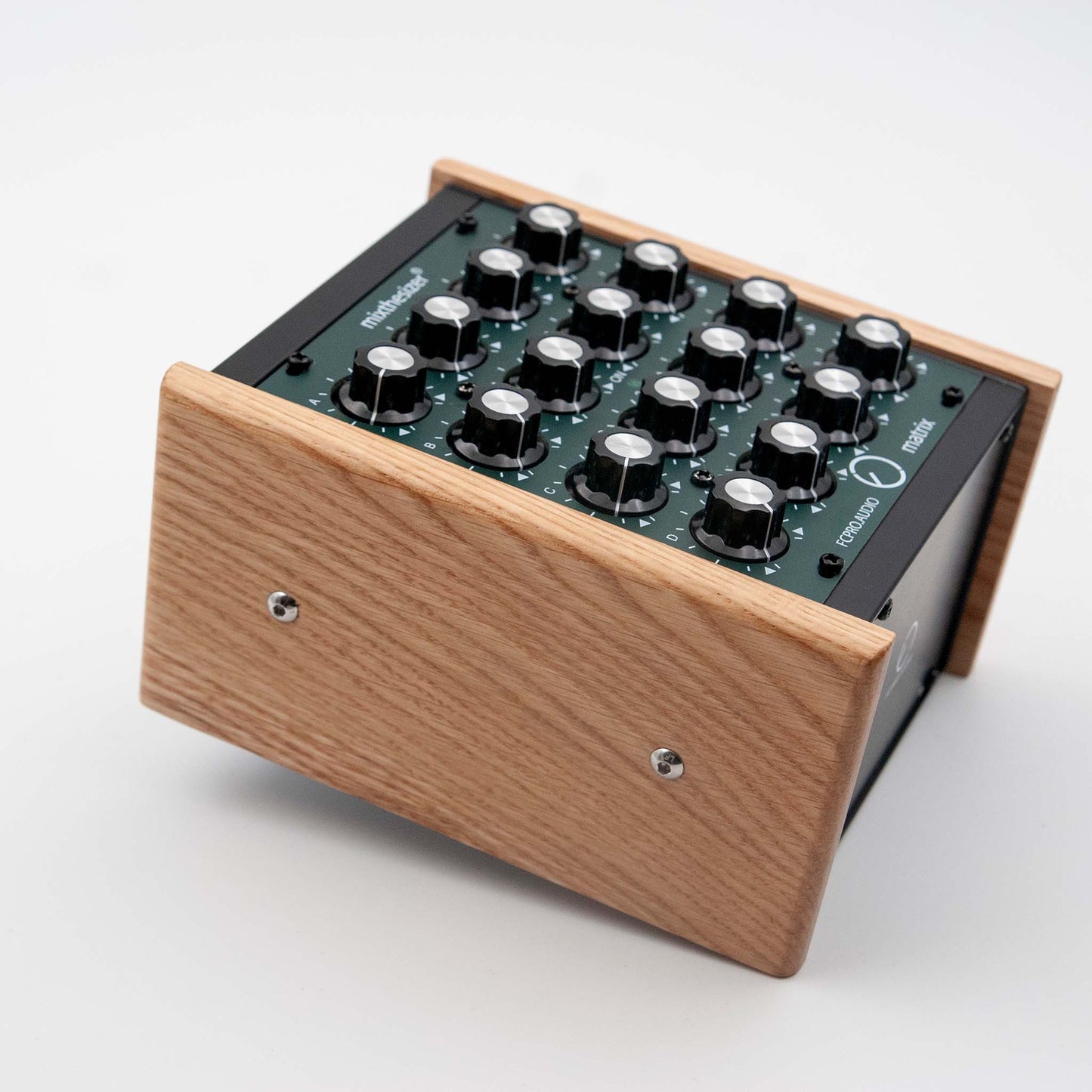

• Construction: Metal front panel, wooden side panels
Applications
Designed for musicians, sound designers, and performers who seek creative freedom through personal audio chains, direct routing, and full analog control.
Estimated delivery within 30 working days from order confirmation.
