1 2

PURE ROUTE 22

PURE ROUTE 22

€490,00 EUR
€490,00 EUR
Sale Sold out
Shipping calculated at checkout.

FCPRO.AUDIO

Mixthesizer · FCPRO.AUDIO

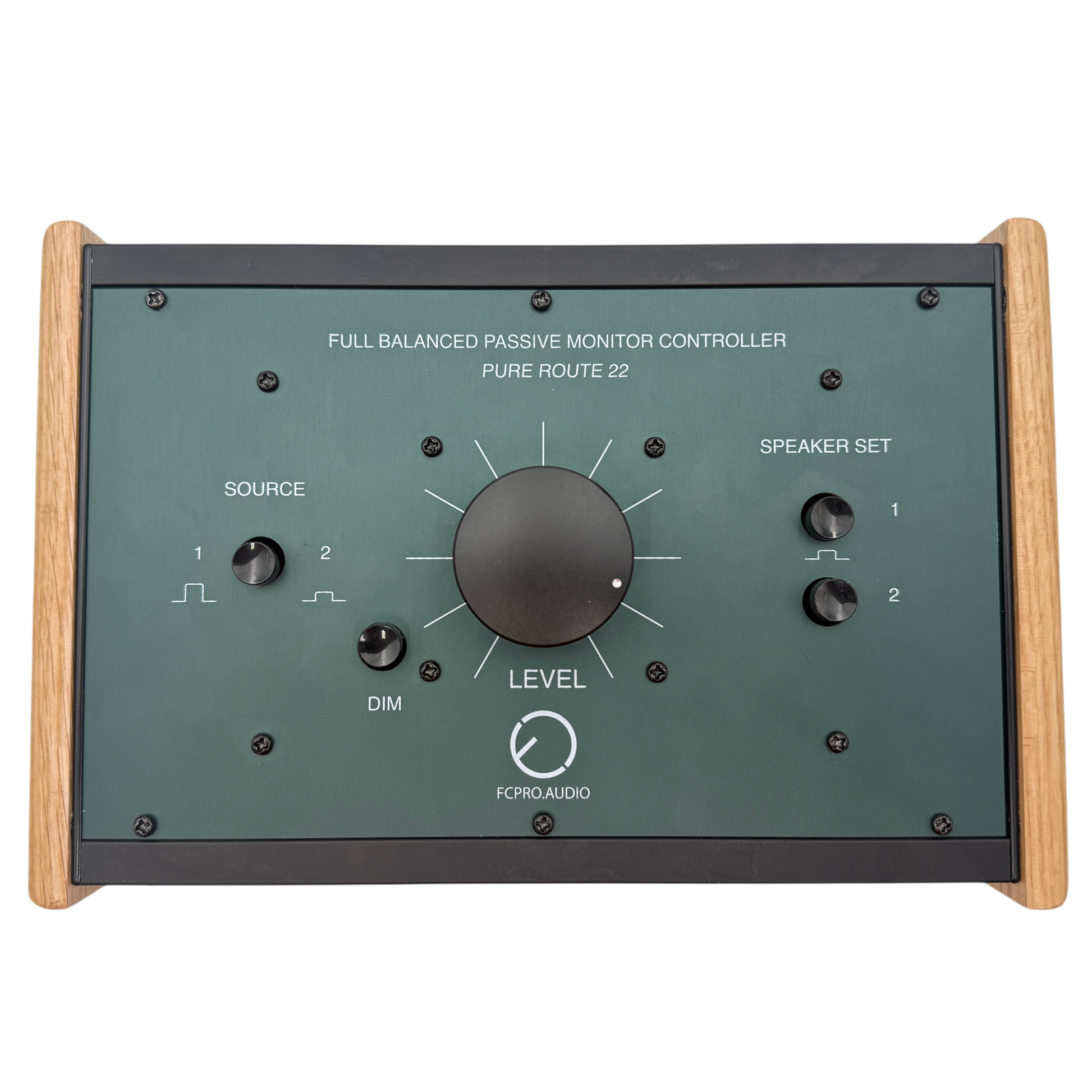

PURE ROUTE 22
Full Balanced Passive Monitor Controller · 2 Inputs · 2 Outputs
100% Passive No power required Custom configs available

Hear your signal. Nothing else. PURE ROUTE 22 is a high-end passive monitor controller built for engineers, producers, and studios that demand absolute signal integrity — zero active circuitry, zero coloration, zero compromise.

A monitor controller should control — not change.
No power. No coloration. No compromise.
Only the cleanest path between your audio and your monitoring system.

Three pillars

Passive
No active circuitry, no power supply. Your signal passes through nothing that could change it.
Transparent
Zero added distortion during level control. Full audio bandwidth response. Every detail of your mix preserved.
Balanced
Fully balanced signal path from input to output. Professional Neutrik XLR connectors throughout.

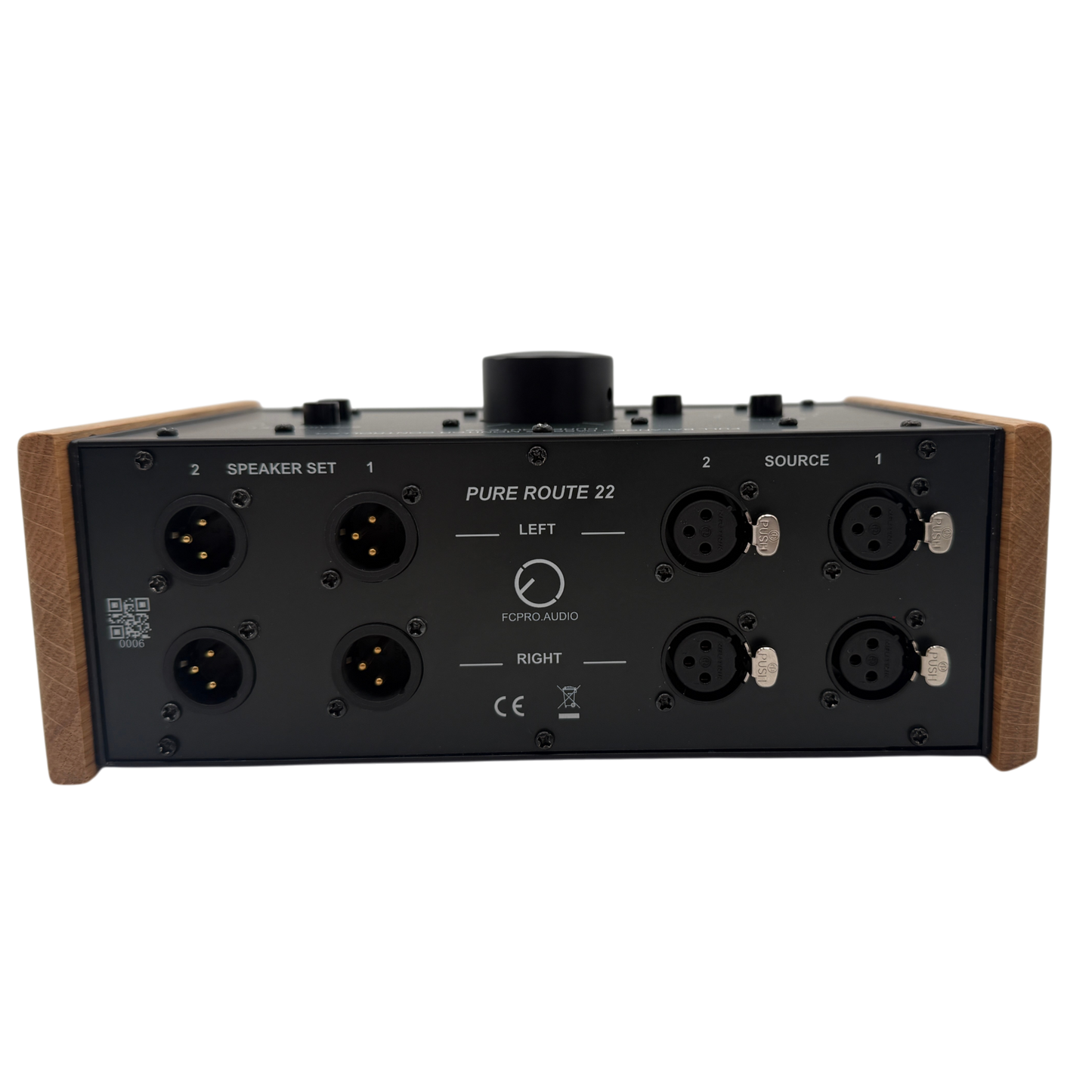

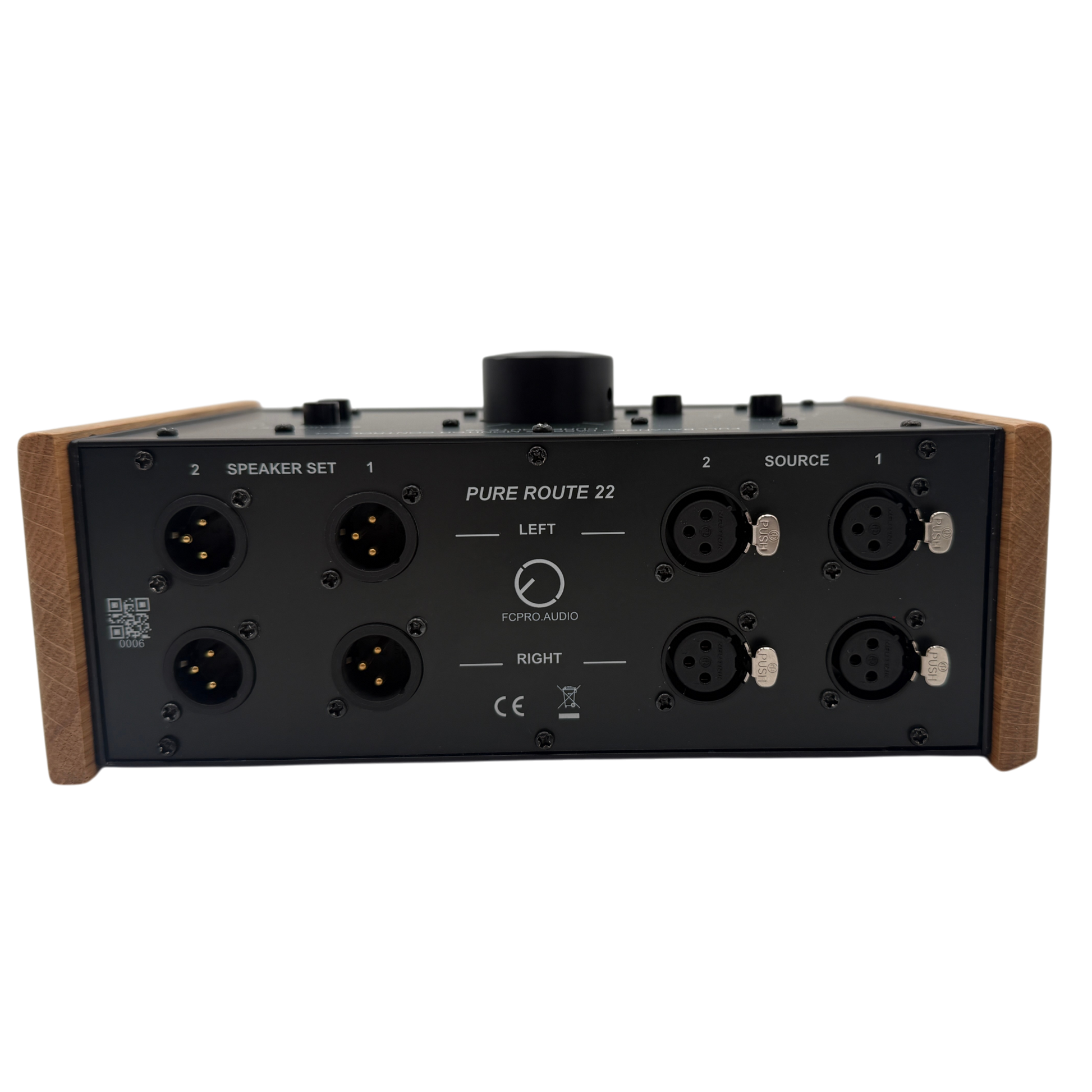

Inputs & outputs

Inputs
2
Fully balanced
Professional Neutrik XLR connectors. Input impedance: 10kΩ per stage.
Outputs
2
Fully balanced — combinable
Output 1 + Output 2 can be used simultaneously for flexible monitoring configurations.

Key features

100% passive design — no power supply required. No electronic stages in the signal path.
4-section balanced stereo potentiometer — precise tracking and level control with zero added distortion.
DIM switch — −20 dB — instant level reduction for quick A/B checks or conversation without touching the main volume.
+40 dBu maximum input level — handles any professional signal level without clipping or distortion.
Output 1 + 2 combinable — monitor on two systems simultaneously for reference comparison or multi-speaker setups.
Custom configurations available — different input/output counts or routing options available on request.

Build quality

PURE ROUTE 22 is built like studio equipment used to be — solid, reliable, and crafted to last decades.

Anodized aluminum chassis Precision silk-screened front panel Handcrafted wooden side panels Boutique assembly Neutrik XLR connectors

Custom configurations

Built for your needs
Need more inputs or outputs?

The standard PURE ROUTE 22 comes with 2 inputs and 2 outputs — but we build custom versions on request. Need 4 inputs and 4 outputs? A different routing configuration? We can build it.

2 in · 2 out — Standard 4 in · 4 out — Custom Other configs — On request

Contact us at fcpro.audio to discuss your configuration.

Designed for

Mixing studios
Mastering rooms
Hybrid analog setups
High-end home studios
Reference monitoring
Custom on request

Technical specifications

Type
100% passive monitor controller
Inputs
2 × fully balanced XLR
Outputs
2 × fully balanced XLR — combinable
Max input level
+40 dBu
Input impedance
10kΩ per stage
Potentiometer
4-section balanced stereo
DIM attenuation
−20 dB
Power required
None
Connectors
Neutrik XLR — professional grade
Signal path
Fully balanced — input to output
Construction
Anodized aluminum · wooden sides
Custom config
Available on request
Designed and manufactured by FCPRO.AUDIO · fcpro.audio
Pure hands-on analog performance.
